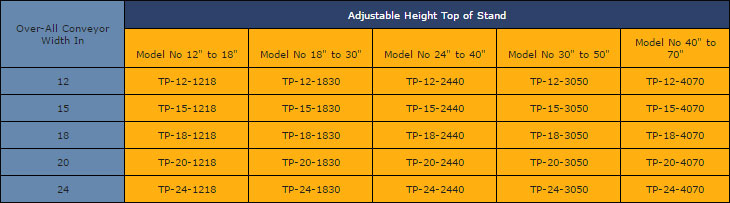

LIGHT DUTY STANDS
Formed 12 gauge channel legs with adjustable plates for incline or decline. Prepunched feet for permanent installation.
Capacity: 1000 lbs.
Powder coated blue.
Also available in stainless steel.

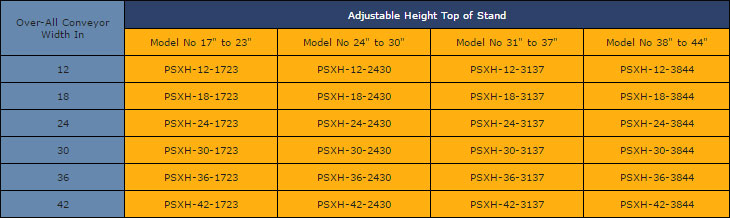

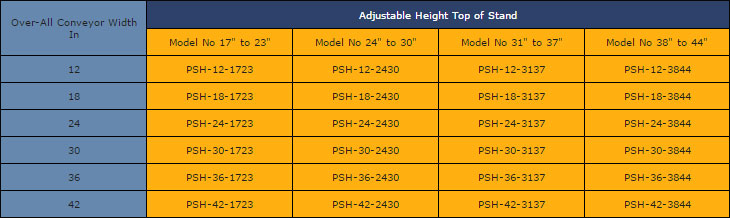

HEAVY DUTY STANDS
2” square tubing legs with adjustable plates for incline or decline. Prepunched feet for permanent installation.
Capacity: 2000 lbs.
Powder coated blue.
SUPER DUTY STANDS
4” structural steel upright. 1” adjustable increments.
Capacity: 4000 lbs.
Powder coated blue.
TRIPOD STANDS
Portable, durable, 3-legged support. Ideal for temporary installations.
Powder coated blue.

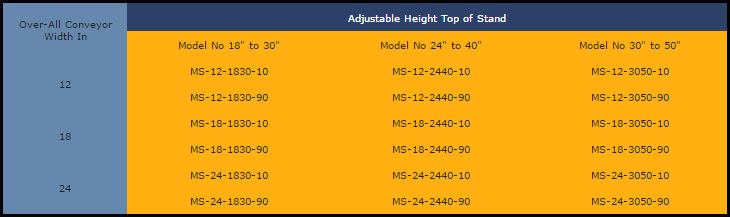

MOBILE STANDS
These supports are easily transportable with four double ball bearing swivel casters. Standard with wheel brakes. Can be moved anywhere in your plant. Heights can also be adjusted. Can be used with skate wheel or light duty conveyors.
Powder coated blue.
HEAVY DUTY V STAND
V-stand with 6” swivel casters with brakes holds up to 16” pipe.
Capacity: 2000 lbs.
Powder coated blue.
TIER STANDS
Tier stand provides support for multi-level installation of conveyor lines. Two tiers standard with extra tiers available for special applications.
Capacity: 2500 lbs.
Consult factory for super heavy duty tier stands.

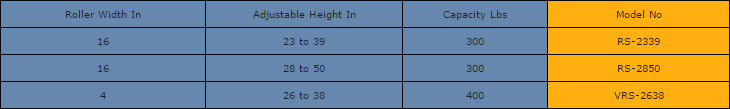

ROLLER STANDS
The height of the roller stands can be adjusted to fit your particular
applications. Highly portable. Can be used anywhere within a plant or warehouse. Strong and durable.
