Roll-A-Way Power and Specialty Conveyors:
Multi-Directional Wheel Conveyors |
|
|
|
 |
| |
|
Multi Directional Chain Conveyors |
|
|
|

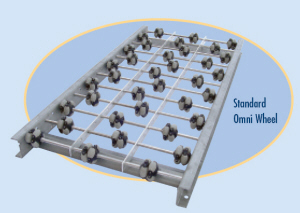

Referred to as
“omni wheels”, these
multidirectional wheels will
allow your packages to change
directions on the proverbial
dime.
SOW SERIES
SPECIFICATIONS:
Wheels: 1.9”, Solid Nylon
▪
Axles: 1/4”
on 3” Centers
▪
Frame: 2-1/2”
x 1” x 1”, 12 Ga. Galv. Formed
Channel
▪
Cross Braces
▪
Frame Cap.
over 3’ - 500 lbs.
▪
Wheel Cap. -
25 lbs.
Request more
information |
|
 |
|
|
|
| |
| |
|
SOW Series |
|
|
|
Over-All Width In.
|
Model
No |
Wheels
Per Ft |
Weight
Per Ft Lbs |
Over-All Length Ft
|
|
12
|
12-SOW-08-3 |
8 |
5 |
3 |
|
18
|
18-SOW-12-3 |
12
|
7 |
3 |
|
24
|
24-SOW-16-3 |
16
|
8 |
3 |
|
30
|
30-SOW-20-3 |
20
|
29
|
3 |
|
|
|
|
|
| |
 GO
BACK |
|
| |
|
|
|
|
|
|
