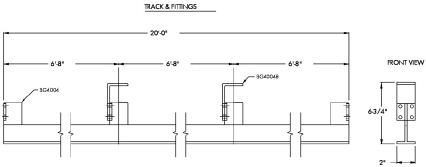

Track & Fittings |
| Standard
track sections are furnished in lengths of 20’-0”. With hanger points on
6’ – 8” centers. Non Standard track (Lengths less then 20’-0”) are
furnished as required, with support points as requires, with support points as
applicable at no additional charge. |
| Rail
sections are very simple to splice, using the combination BG40047 hanger/splice
bracket. |
| The
EG-100 Track adjuster |
 |
| The
EG-100 Track Adjuster is utilized to adjust tension of the continuous cable. Two
track adjusters are required on each system. They are always used in pairs and
preferably located next to idle corners on the slack or “downstream” side of
the drive. Track adjusters are located opposite each other on both sides of a
180º
leg of the system |
| BG4003 Upgrade Safety Device |
 |
| The Upgrade safety device prevents loads from slipping down in the event of power or system failure. The upgrade safety device is suggested for all vertical curves with an elevation change greater then 6’-0”. It should be noted that the system must travel in one direction only unless the safety device is manually flipped 180º. |
|
|
