Roll-A-Way Conveyors: 1.9" & 2" Light Duty Conveyors

1.9" & 2" Light Duty Conveyors

Economical, light weight. Ideal for handling cartons in temporary or permanent applications. Poly covers available.

 200-ARL & 190-SRL SERIES SPECIFICATIONS:

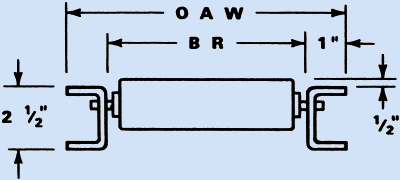

Rollers: 1.9”, 16 Ga. Galv./2” Alum. ▪ Axles: 1/4” Round, Spring Loaded ▪ Frame: 2-1/2” x 1” x 1”, 12 Ga. Galv. or 1/8” Alum. Formed Channel ▪ 5 Cross Braces ▪ Hook and Bolt Couplers Standard ▪ Roller Capacity - Steel: 125lbs, Alum: 65lbs ▪ 10’ Frame Capacity - Steel: 50lbs/ft, Alum: 30lbs/ft, ▪ 5’ Frame Capacity - Steel: 200lbs/ft, Alum.: 100lbs/ft
190-SRL SERIES GALVANIZED STEEL  Request more information
  WEIGHT
Roller Centers
(inches)		 MODEL NUMBER Over-All Width
(inches)		 Between Rail Width
 (inches)		 5 ft. Section
(lbs.)		 10 ft. Section
(lbs.)
3 190-SRL-0312 12 10 48 95
190-SRL-0315 15 13 55 112
190-SRL-0318 18 16 64 127
190-SRL-0320 20 18 81 136
190-SRL-0324 24 22 84 156
190-SRL-0326 26 24 85 171
190-SRL-0330 30 28 96 193
4 1/2 190-SRL-4512 12 10 39 79
190-SRL-4515 15 13 43 86
190-SRL-4518 18 16 49 98
190-SRL-4520 20 18 53 105
190-SRL-4524 24 22 62 124
190-SRL-4526 26 24 66 129
190-SRL-4530 30 28 70 140
6 190-SRL-0612 12 10 33 66
190-SRL-0615 15 13 37 75
190-SRL-0618 18 16 39 82
190-SRL-0620 20 18 45 89
190-SRL-0624 24 22 52 102
190-SRL-0626 26 24 53 106
190-SRL-0630 30 28 59 117
12 190-SRL-1212 12 10 29 52
190-SRL-1215 15 13 32 58
190-SRL-1218 18 16 35 63
190-SRL-1220 20 18 36 66
190-SRL-1224 24 22 40 73
190-SRL-1226 26 24 42 76
190-SRL-1230 30 28 46 83


"200-ARL" SERIES ALUMINUM
  WEIGHT
Roller Centers
(inches)		 MODEL NUMBER Over-All Width
(inches)		 Between Rail Width
(inches)		 5 ft. Section
(lbs.)		 10 ft. Section
(lbs.)
3 200-ARL-0312 12 10 27 53
200-ARL-0315 15 13 32 63
200-ARL-0318 18 16 34 72
200-ARL-0320 20 18 38 75
200-ARL-0324 24 22 42 83
4 1/2 200-ARL-4512 12 10 23 42
200-ARL-4515 15 13 24 46
200-ARL-4518 18 16 26 53
200-ARL-4520 20 18 28 59
200-ARL-4524 24 22 31 62
6 200-ARL-0612 12 10 18 36
200-ARL-0615 15 13 20 40
200-ARL-0618 18 16 23 45
200-ARL-0620 20 18 25 48
200-ARL-0624 24 22 29 56
12 200-ARL-1212 12 10 15 27
200-ARL-1215 15 13 16 29
200-ARL-1218 18 16 18 32
200-ARL-1220 20 18 19 34
200-ARL-1224 24 22 21 38
